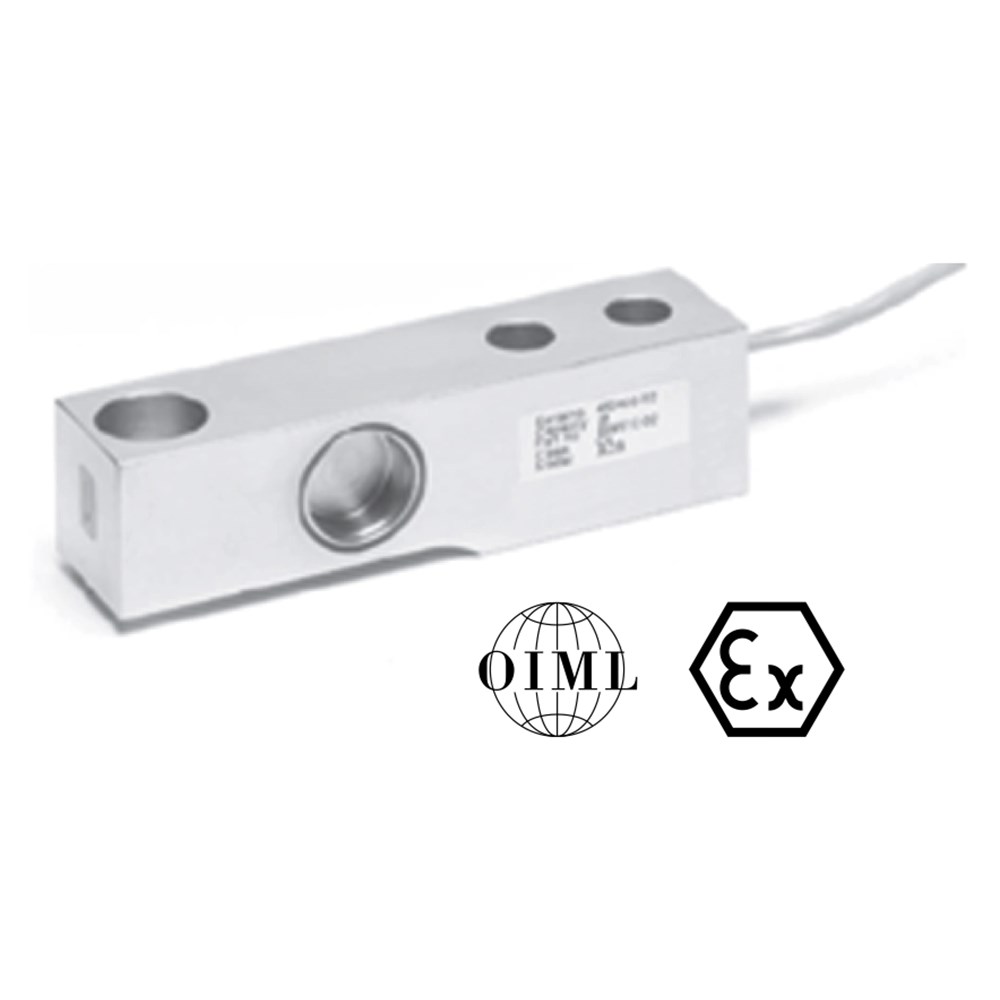

ACB Single-Ended Beam Load Cell
Product Information
The Model ACB is a high performance stainless steel beam type load cell. An integral mounting step removes the need for spacer plates and ensures optimum “bolt down” conditions.
This product is suitable for small and medium platform scales, hybrid scales, pallet weighers, and process weighing.
The fully welded construction and the cable entry ensure that this product can be used successfully in demanding environments found in the food, chemical, and allied process industries.
-
Capacities: 500 kg, 1 t, 2 t, and 5 t
-
Low proile, stainless steel construction
-
Hermetically sealed, IP66 and IP68
-
Certiied to OIML R60, 6000d
-
1000 Ω bridge impedance
-
Current calibration output (SC) ensures easy and accurate connection of multiple load cells
-
Integral mounting step
-
Optional
– ATEX versions are available for use in potentially explosive atmospheres, caused by gas or dust
(1) 500 kg is approved to C3 only
FSO—Full-Scale Output
SC-version: The rated output and the output resistance are balanced in such a way, that the output current is calibrated to within 0.05% of a reference value. This allows easy parallel connection of the load cells.
All specifications subject to change without notice.
|
SPECIFICATIONS |
||||
|
PARAMETER |
VALUE |
UNIT |
||
|
Standard capacities (Emax) |
500, 1000, 2000, 5000 |
Kg |
||
|
Accuracy class according to OIML R-60 |
Non-Approved |
C3 |
C6(1) |
|
|
Maximum no. of verification intervals (n) |
|
3000 |
6000 |
|
|
Minimum verification interval, (Vmin Emax/Y) |
|
Emax/6000 |
Emax/12,000 |
|
|
Minimum verification interval, Type MR |
|
Emax/15,000 |
Emax/20,000 |
|
|
Rated output (=S) |
2 |
mV/V |
||
|
Tolerance on rated output |
0.02 |
±mV/V |
||
|
Zero balance |
1.0 |
±% FSO |
||
|
Combined error |
0.0500 |
0.0230 |
0.0120 |
±% FSO |
|
Non-repeatability |
0.070 |
0.035 |
0.018 |
±% FSO |
|
Minimum dead load output return |
0.0500 |
0.017 |
0.008 |
±% of the applied load |
|
Creep error (30 minutes) |
0.0600 |
0.0245 |
0.012 |
±% of the applied load |
|
Temperature effect on minimum dead load |
0.0250 |
0.0117 |
0.0058 |
±% FSO/5°C |
|
Temperature effect on sensitivity |
0.0250 |
0.0088 |
0.0045 |
±% applied load/5°C |
|
Maximum safe over load |
150 |
% Emax |
||
|
Ultimate over load |
300 |
% Emax |
||
|
Maximum safe side load |
100 |
% Emax |
||
|
Deflection at Emax |
0.20, 0.20, 0.22, 0.31 |
Mm |
||
|
Excitation voltage |
5 to 12 |
V |
||
|
Maximum excitation voltage |
15 |
V |
||
|
Input resistance |
1000±50 |
Ω |
||
|
Output resistance |
1000±10 |
Ω |
||
|
Insulation resistance |
>5000 |
M Ω |
||
|
Compensated temperature range |
–10 to +40 |
°C |
||
|
Operating temperature range |
–40 to +80 |
°C |
||
|
Storage temperature range |
–40 to +90 |
°C |
||
|
Element material (DIN) |
Stainless steel 1.4542 |
|
||
|
Sealing (DIN 40.050 / EN60.529) |
IP66 and IP68 |
|
||
|
SC-Version (current calibration) |
Standard |
|
||
|
Recommended torque on fixation bolts |
150 |
N*m |
||
Applications
- Platform scales
- Belt scales
- Overhead track scales
- Silo hopper weighing
- Small and medium platform scales
- Hybrid scales
- Pallet weighers
- Process weighing
